500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles Bitumen Protected

500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles Bitumen Protected

    • 500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected
  • 500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected

    รายละเอียดสินค้า:

    Place of Origin: China
    ชื่อแบรนด์: JSHG
    ได้รับการรับรอง: ISO/CNAS/IAF/CA
    Model Number: HG-SP-69KV

    การชำระเงิน:

    Minimum Order Quantity: One 40 HQ Container
    ราคา: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    ติดต่อ
    รายละเอียดสินค้า
    Application: Tranmission Line Project MOQ: one 40HQ
    Shape: Octagonal Thickness: 2.3-5mm
    Material: Q235, Q345, Q420, Q460, Gr.50, Gr.65 Appearance Treatment: Bitumen
    Height: 30m
    แสงสูง:

    steel power pole

    ,

    power distribution poles

    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles Bitumen Protected



    Specifications:



    Shape: PolygonalTubular, Tapered



    Material: Q345B ,minimum yield strength>=345mpa
                    Q235B,minimum yield strength>=235mpa
                     Others equivalent steel material : Q420, Q460, ASTM573 GR65, GR50 ,SS400,SS490



    Voltage Grade: 10KV-500KV



    Surface Treatment: Hot dip galvanized according to ASTM A123

                                      Powder coated according to client requirements



    Length of per section: 16m Once forming without joint



    Welding:  CO2 welding or submerged arc auto methods

                      Welding Standard :AWS ( American Welding Society ) D 1.1



    Life Period: More than 25 years



    Base plate:  square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s                                 requirement.



    Package:  Covered by Plastic Wrap or Mat or according to client's requests.




    Description:



    Hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc which plays an important role in electrical power transmission and distribution industry. Our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



    Material

    we purchase steel plate from famous mill factory with mill certificate issued with stamp and signature.



    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 0



    professional physical and chemical inspection

    All raw material will be tested in our chemical and physical labs before producing.

    Meanwhile, JSHG has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.





    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 1  500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 2

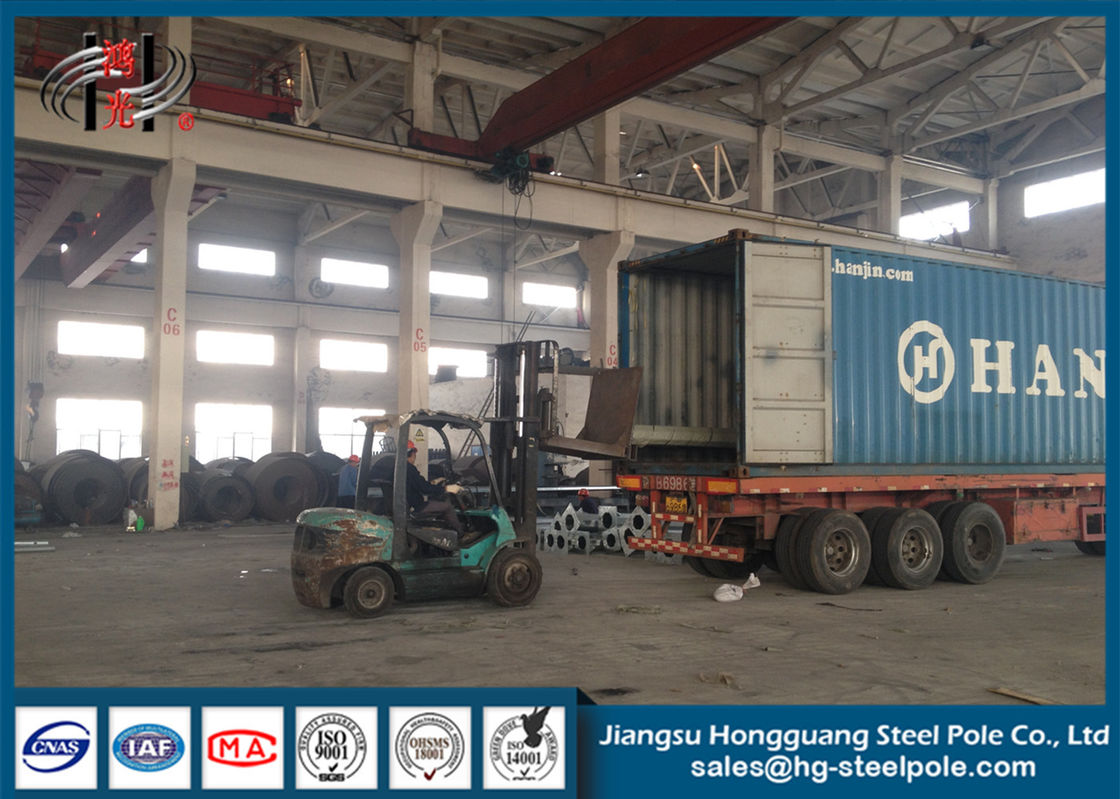

    Packaging & Shipping

    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 3

    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 4







    Production Process


    Raw material test → Cutting →Bending →Forming Operation→Seam Welding →Fitting Wealding→Welding Inspection →Pre-assemble for Semi-finished Products → Galvanizing→ Straightening →  Pre-assemble →Packing & Delivery



    500KG 3.0mm Thickness 50ft Height Steel Utility Electrical Power Poles  Bitumen Protected 5


    Please feel free to contact us!



    10-500KV Hot Dip Galvanized Electrical Power Steel Tubular Pole for Power Transmission and Distribution Line.pdf
