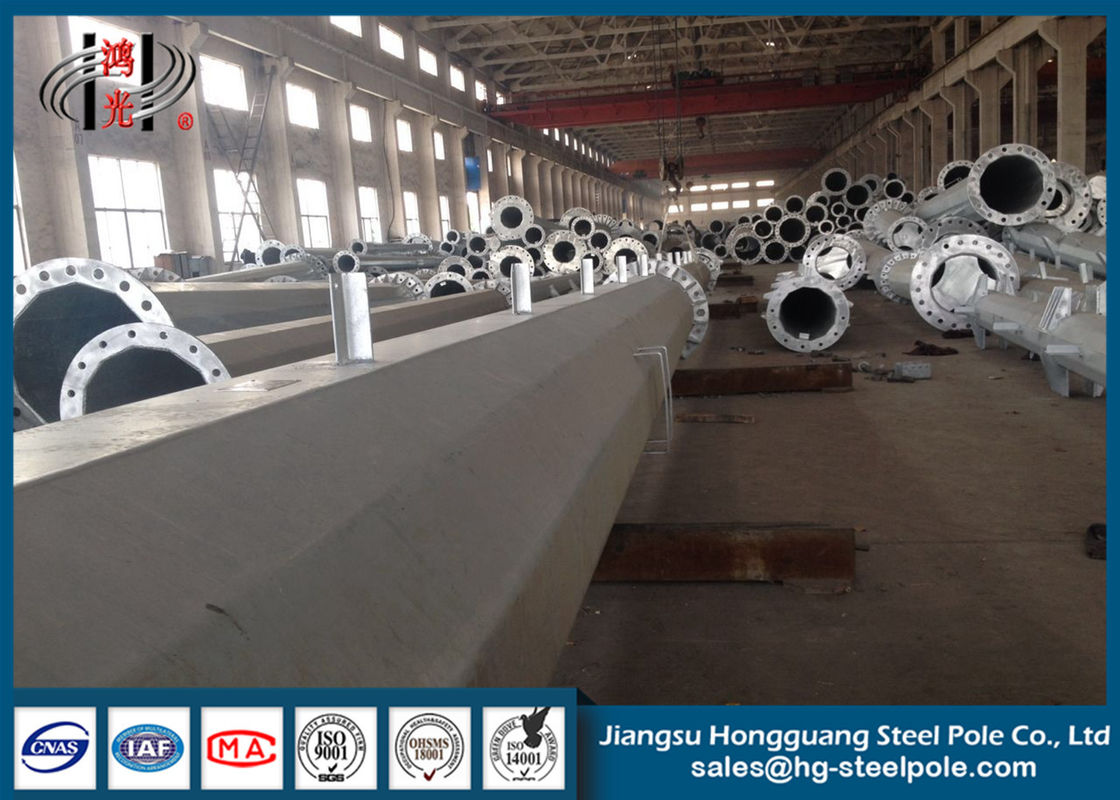

2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen

2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen

2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: JSHG
ได้รับการรับรอง: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV

การชำระเงิน:

Minimum Order Quantity: One 40 HQ Container
ราคา: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
ติดต่อตอนนี้
รายละเอียดสินค้า
Application: Electrical Power transmission and distribution line Wall Thickness: 30mm
Material: Q235, Q345, Gr.50, Gr.65 Shape: Round / polygonal / Conical / Tubular / Tapered
Appearance Treatment: Hot-dip galvanized / Painting Welding: According to AWS D 1.1, CO2 welding or submerged arc auto methods

2 Sections 220 KV Power Transmission Line Electric Steel Power Pole With Bitumen



Description:





NEA STANDARD FOR STEEL POLES
Height (ft) 25 30 35 40
Top Diameter (mm) 120 127 127 127
Butt Diameter (mm) 152 226 248 317
Thickness (mm) 2.5 3 3 3
Design Load (kg.) 300 500 500 500
Yield Stress (MPA) 345 345 345 345
Zinc Coating (microns) 86 86 86 86





Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.



Product Detail :

2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen



2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen



Packaging & Shipping:



2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen



2 Sections 220 KV Power Transmission Poles Steel Power Pole With Bitumen







Terms and Conditions:


1. Price Term: EXW, FOB, CFR or CIF.

  • The price includes pole shaft, base plate, cross arm and anchor bolt.
  • Shipping seaport: Shanghai Seaport.
  • Please provide drawings if you have so that we can calculate the accurate price for you.
  • We also provide design according to your requests, if you don't have drawings.

2. MOQ: One 40FT Container.


3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.


5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.





Contact Us


Jiangsu Hongguang Steel Pole Co., Ltd.


Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212


Telephone: +86 510 878 441 56


Fax: +86 510 878 435 28


Mobile: +86 138 615 059 69


Skype:  tangjia870124

Please feel free to contact us!
